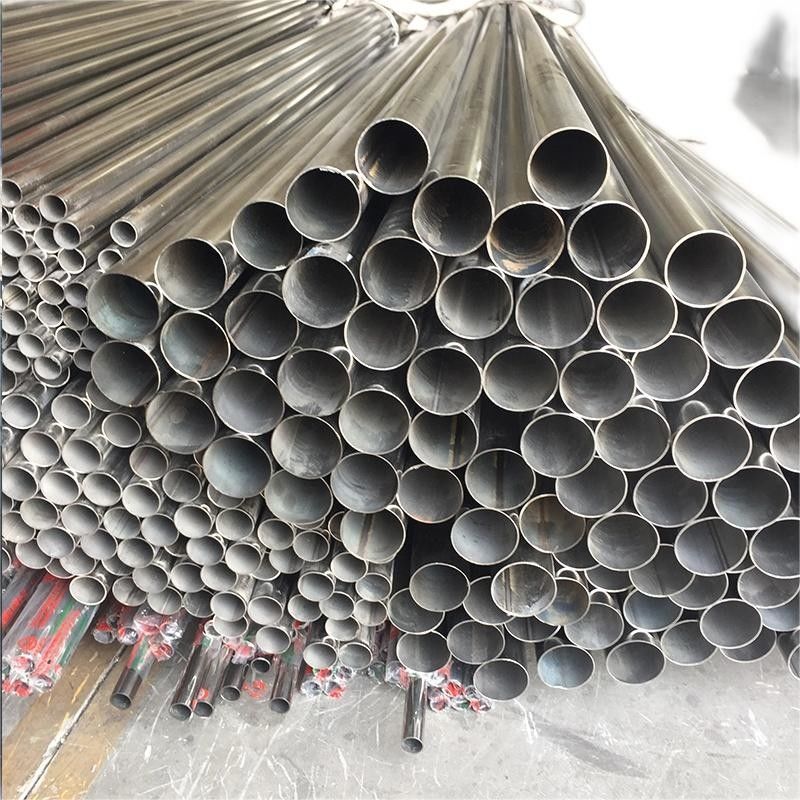

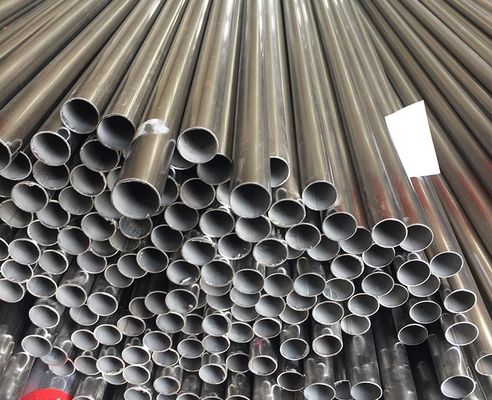

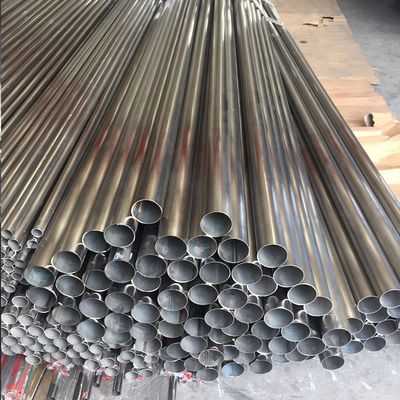

ASTM A554 Stainless Steel Pipe Welded 304 Thin Wall 16m - 200mm Hollow Round

I'm Online Chat Now

ASTM A554 Stainless Steel Pipe Welded 304 Thin Wall 16m - 200mm Hollow Round

ASTM A554 Stainless Steel Pipe Welded 304 Thin Wall 16m - 200mm Hollow Round
ASTM A554 Stainless Steel Pipe Welded 304 Thin Wall 16m - 200mm Hollow Round
ASTM A554 Stainless Steel Pipe Welded 304 Thin Wall 16m - 200mm Hollow Round ASTM A554 Stainless Steel Pipe Welded 304 Thin Wall 16m - 200mm Hollow Round ASTM A554 Stainless Steel Pipe Welded 304 Thin Wall 16m - 200mm Hollow Round ASTM A554 Stainless Steel Pipe Welded 304 Thin Wall 16m - 200mm Hollow Round

Large Image :  ASTM A554 Stainless Steel Pipe Welded 304 Thin Wall 16m - 200mm Hollow Round

Product Details:
Place of Origin: China
Brand Name: EDEST STEEL
Certification: CE PED
Model Number: 304,304L,316,316L,310S
Payment & Shipping Terms:
Minimum Order Quantity: 1ton
Price: Negotiable
Packaging Details: Waterproof and rust-proof seaworthy packaged goods according to customer requirements
Delivery Time: 3-5work days
Payment Terms: T/T, L/C
Supply Ability: 1000ton

ASTM A554 Stainless Steel Pipe Welded 304 Thin Wall 16m - 200mm Hollow Round

Description
Standard: ASTM AISI JIS EN DIN GB BS Type: Welded
Material: 304 316l Length: 1-12m
MOQ: 1ton Thickness: 0.4-30mm
Outer Diameter: 6-200mm Surface: Brush,Hair Line,Polish,Bright
High Light:

ASTM A554 Stainless Steel Pipe

,

Welded Stainless Steel 304 Hollow Pipe

,

200mm Stainless Steel Hollow Pipe

Stainless steel pipe ASTM A554 welded steel pipe 304 thin wall stainless steel pipe 16m-200mm hollow round pipe

ASTM A554 Stainless Steel Pipe Welded 304 Thin Wall 16m - 200mm Hollow Round 0

Classification of stainless steel decorative tubes:
Steel pipes are divided into two categories: seamless steel pipes and welded steel pipes (seamed pipes). According to the cross-sectional shape, it can be divided into round tubes and special-shaped tubes. Round steel tubes are widely used, but there are also some square, rectangular, semicircular, hexagonal, equilateral triangle, octagonal and other special-shaped steel tubes.
For steel pipes under fluid pressure, a hydraulic test is required to check their pressure resistance and quality. It is qualified if no leakage, soaking or expansion occurs under the specified pressure. Some steel pipes also need to be crimped according to standards or requirements of the buyer , Flaring test, flattening test, etc.
Stainless steel pipe ASTM A554 welded steel pipe 304 thin wall stainless steel pipe 16m-200mm hollow round pipe

ASTM A554 Stainless Steel Pipe Welded 304 Thin Wall 16m - 200mm Hollow Round 1

Dimensions and tolerances of stainless steel decorative pipes
Deviation level Standardized outer diameter allowable deviation D1 ±1.5%, minimum ±0.75 mm D2 ±1.0%. Minimum ±0.50 mm D3 ±0.75%. Minimum ±0.30 mm D4 ±0.50%. Minimum ±0.10 mm
Stainless steel pipe ASTM A554 welded steel pipe 304 thin wall stainless steel pipe 16m-200mm hollow round pipe

ASTM A554 Stainless Steel Pipe Welded 304 Thin Wall 16m - 200mm Hollow Round 2

Stainless steel pipe nominal size standard outer diameter * pipe wall thickness
Stainless steel pipe specification table
Specification:
Ф6x1 Ф34x2-8 Ф70x3-10 Ф152x3-20
Ф8x1-2 Ф36x2-8 Ф73x3-10 Ф159x3-25
Ф10x1-2 Ф38x2-8 Ф76x2-16 Ф168x3-30
Ф12x1-3 Ф40x2-8 Ф80x2-16 Ф180x3-30
Ф14x1-4 Ф42x2-8 Ф83x2-16 Ф219x4-35
Ф16x1-4 Ф45x2-8 Ф89x2-16 Ф245x5-35
Ф18x1-4 Ф48x2-8 Ф95x2.5-16 Ф273x5-40
Ф20x1-5 Ф50x2-8 Ф102x2.5-18 Ф325x5-40
Ф22x1-5 Ф51x2-8 Ф108x2.5-18 Ф355x7-40
Ф25x1.5-5 Ф57x2-10 Ф114x2.5-18 Ф377x8-45
Ф27x2-5 Ф60x2-10 Ф120x3-18 Ф426x8-50
Ф28x2-5 Ф63x2-10 Ф127x3-18 Ф456x8-50
Ф30x2-8 Ф65x3-10 Ф133x3-18 Ф530x8-50
Ф32x2-8 Ф68x3-10 Ф140x3-20 Ф630x10-40
Stainless steel pipe ASTM A554 welded steel pipe 304 thin wall stainless steel pipe 16m-200mm hollow round pipe

ASTM A554 Stainless Steel Pipe Welded 304 Thin Wall 16m - 200mm Hollow Round 3

Stainless steel square tube, stainless steel flat through specification:

7×7 10×10 12×12 15×15 15.8×15.8 19×19 20×20 22×22 25×25 30×30 31.8×31.8 35×35 38×38 40× 40 50×50 60×60 70×70 76×76 80×80 90×90 100×100 120×120 125×125 150×150 Thickness: 0.4~8.0mm
Specifications of stainless steel rectangular tube and stainless steel flat tube:

10×20 10×25 10×30 10×40 10×50 10×60 10×70 10×80 10×90 10×100 11×35 12.7×25.4 13×25 15× 25 15×30 15×35 15×40 15×50 15×60 15×65 15×70 15×80 15×90 15×100 16×32 20×30 20×40 20×50 20×60 20×70 20 ×80 20×90 20×100 20×120 20×125 20×150 20×200 25×40 25×50 25×60 25×70 25×80 25×90 25×100 25×120 25×125 25×150 25×200 30×40 30×50 30×60 30×70 30×80 30×90 30×100 30×120 30×125 30×150 30×200 40×50 40×60 40×70 40×80 40× 90 40×100 40×120 40×125 40×150 40×200 45×60 45×75 45×95 50×60 50×75 50.8×76.2 50×100 50×120 50×125 50×150 50×200 60 ×70 60×80 60×90 60×100 60×120 60×125 60×140 60×150 60×200 70×80 70×90 70×100 70×110 70×120 70×125 70×130 70×140 70×150 70×180 70×200 75×100 75×125 75×150 75×175 80×90 80×100 80×120 80×125 80×140 80×150 80×160 80×200 90×100 90× 110 120×140 120×180 120×200 125×150 125×175 125×200 130×170 150×200, 100×140 100×150 100×200 110×130 110×150 120 Thickness: 0.4~10mm
Stainless steel pipe ASTM A554 welded steel pipe 304 thin wall stainless steel pipe 16m-200mm hollow round pipe

ASTM A554 Stainless Steel Pipe Welded 304 Thin Wall 16m - 200mm Hollow Round 4

Product Transportation
We offer different modes of transport depending on the customer's destination:rail transport and ship transport.The Shipping Mark shall consist of:Trade mark,Seller's name,Product name,Applicable standards,Specifications,Package No,Contract No,Heat No,Color,Production date,Weighing method,Net weight,Gross Weight,Consignee and Protection symbols,etc..

ASTM A554 Stainless Steel Pipe Welded 304 Thin Wall 16m - 200mm Hollow Round 5



Global Market
We are committed to exploring the international market. Our customers come from all over the world, such as Africa, Latin America, Middle East, Southeast Asia, Europe, etc. Our high quality and low price products have won their recognition.

ASTM A554 Stainless Steel Pipe Welded 304 Thin Wall 16m - 200mm Hollow Round 6



FAQ



Q1:What product information do I need to provide?

A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.



Q2:It's my first time to import steel products, can you help me with it?

A:Sure,we have agent to arrange the shipment, we will do it together with you.



Q3:What ports of shipment are there?

A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.



Q4:What about product prices information?

A:Prices various according to periodic price changes of raw materials.



Q5:What is your terms of payment ?

A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.



Q6.Do you provide custom made Products service?

A: Yes,if you have your own design , we can produce according to your specification and drawing.



Q7:How long does your delivery time take?

A:In general, our delivery time is within 5-10 days, and may be longer if the quantity is extremely large or special circumstances occur.



Q8:How to pack the products?

A: Standard export sea-worthy packaging, the inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.

Q9:Do you provide free samples?

A: Yes, we can provide a free sample for testing,buyer should bear all the shipping costs.



If you have further questions, please feel free to contact us via:

Contact information: Jeff Mobile/WeChat/whatsapp: +86 18921116238

E-mail: jeff@edesteel.com



We keep providing high-quality products and competitive prices to ensure the interests of customers. We highly value each of our customers and value the relationship, we see them not only as business partners but as true friends. Will maintain good service and put the interests of customers first.
