Product Details:
|
| High Light: | Rectangular Hollow RHS Steel Tube,S355JR Hollow RHS Steel Tube,EN10219 Hollow Steel Tube |
||
|---|---|---|---|

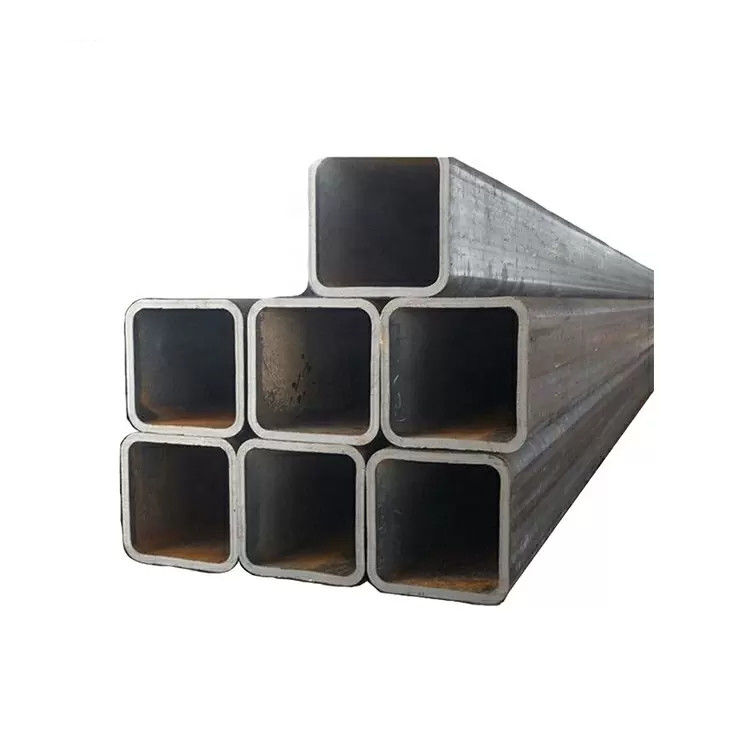

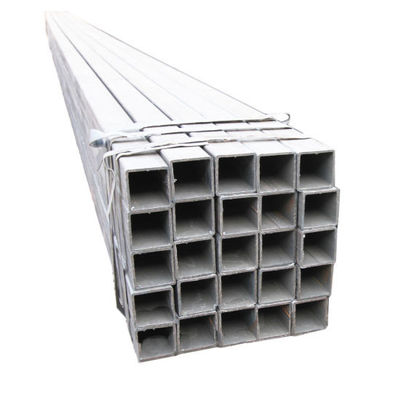

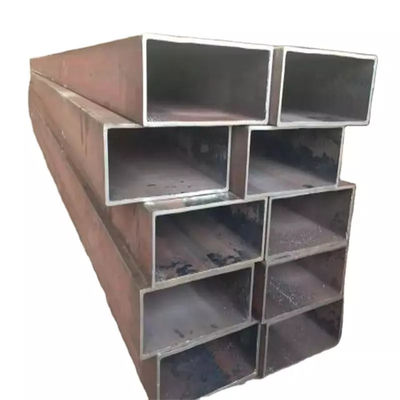

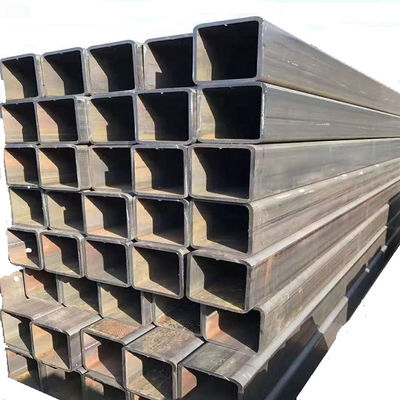

Rectangular Hollow - RHS STEEL TUBE
RHS (Rectangular Hollow Sections) Sizes:
Wide: 50*20mm-400-300mm
WT: 1.6mm-16.0mm
Rectangular Hollow - RHS Steel Tube China Square Rectangular Tube Factory Direct Sales Customized Various Rectangular Hollow Tube Low Price High Quality
| Product Name | Product Name |
| Product Name | Square pipe: 20*20mm~500*500mm Thickness: 1.2mm~20mm Length: 2.0m~12m |
| Material | Low carbon steel |
| Steel Grade | Q195 = S195 / A53 Grade A Q235 = S235 / A53 Grade B / A500 Grade A / STK400 / SS400 / ST42.2 Q355 = S355JR / A500 Grade B Grade C |
| Standard | EN10219, EN10210 GB/T 6728 JIS G3466 ASTM A500, A36 |
| Surface Anti-rusty Coating | pre-galvanized (Zinc coating: 40-80g/m2) hot dipped galvanized (Zinc coating: 200-600g/m2 ) |
| Pipe Ends | Pipe Ends |
| Certificates | ISO 9001 / ISO 18001 / ISO 14001 / CE |
| Packing and Shipment | 1. OD 300mm and below In hexagonal seaworthy bundles packed by steel strips, With two nylon slings for each bundles 2. above OD 300mm in bulk or according to custom opinion 3. 25 tons/container and 5 tons/size for a trial order; 4. For 20" container the max length is 5.8m; 5. For 40" container the max length is 11.8m. |
| Usage | Construction / building materials steel pipe Structure steel pipe Solar structure component steel pipe Fence post steel pipe Greenhouse frame steel pipe |
| Trade terms | FOB, CFR, CIF, EXW, FCA |
| Payment terms | T/T, LC |
| Delivery time | 15-45 days (based on quantity) after receiving advanced payment by T/T or LC . |
| Main market | Middle East, Europe, Middle&South America, Africa and Oceania |
Hollow Section
Hollow section members can be circular, square, or rectangular sections, although other shapes are available, such as elliptical. Hollow section is only composed of structural steel per code.These sections are available with anti rust oil coating from inside & outside to ensure safe delivery to end customers.
Chemical composition of material
| Grade | element | C | Mn | P | S |
| ASTM A500 Gr.b | % | 0.05%-0.23% | 0.3%-0.6% | 0.04% | 0.04% |
| Acc.to EN10027/1 | Acc.to EN10027/2 | C% max (Norminal W.T.(mm) | Si% max | Mn% max | P% max | S% max | N% max | |
| and IC 10 | ≤ 40 | |||||||
| S235JRH | 1.0039 | 0.17 | 0.20 | - | 1.40 | 0.045 | 0.045 | 0.009 |
| S275JOH | 1.0149 | 0.20 | 0.22 | - | 1.50 | 0.040 | 0.040 | 0.009 |
| S275J2H | 1.0138 | 0.20 | 0.22 | - | 1.50 | 0.035 | 0.035 | - |
| S355JOH | 1.0547 | 0.22 | 0.22 | 0.55 | 1.60 | 0.040 | 0.040 | 0.009 |
| S355J2H | 1.0576 | 0.22 | 0.22 | 0.55 | 1.60 | 0.035 | 0.035 | - |
Mechanical properties of material
| Grade | Yield Strength | Tensile Strength | Elongation |
| A500.Gr.b | 46 ksi | 58 ksi | 23% |
| A513.GR.B | 72 ksi | 87 ksi | 10% |
| Norm | Yield Strength | Tensile Strength | Min.elogation | Min.percent properties | ||||||||
|
Acc.to EN10027/1 and IC 10
|
Acc.to EN10027/2 | Norminal W.T.mm | Norminal W.T.mm | Longit. | Cross | Test temperature°C | Average min.impact value | |||||
| ≤16 | >6 | >40 | <3 | ≤3≤65 | Norminal W.T.mm | |||||||
| ≤65 | ≤65 | ≤40 | >40 | >40 | ≤65 | |||||||
| ≤65 | ≤40 | |||||||||||
| S253JRH | 1.0039 | 235 | 225 | 215 | 360-510 | 340-470 | 26 | 25 | 24 | 23 | 20 | 27 |
| S275JOH | 1.0149 | 275 | 265 | 255 | 410-580 | 410-560 | 22 | 21 | 20 | 19 | 0 | 27 |
| S275J2H | 1.0138 | 275 | 265 | 255 | 430-560 | 410-560 | 22 | 21 | 20 | 19 | -20 | 27 |
| S355JOH | 1.0547 | 355 | 345 | 335 | 510-680 | 490-630 | 22 | 21 | 20 | 19 | 0 | 27 |
| S355J2H | 1.0576 | 355 | 345 | 335 | 510-680 | 490-630 | 22 | 21 | 20 | 19 | -20 | 27 |
Equivalent specfications
|
EN 10210-1 |
NF A 49501 NF A 35501 |
DIN 17100 DIN 17123/4/5 |
BS 4360 |
UNI 7806 |
| S235JRH | E 24-2 | St 37.2 | – | Fe 360 B |
| S275JOH | E 28-3 | St 44.3 U | 43 C | Fe 430 C |
| S275J2H | E 28-4 | St 44.3 N | 43 D | Fe 430 D |
| S355JOH | E 36-3 | St 52.3 U | 50 C | Fe 510 C |
| S355J2H | E 36-4 | St 52.3 N | 50 D | Fe 510 D |
| S275NH | – | St E 285 N | – | – |
| S275NLH | – | TSt E 285 N | 43 EE | – |
| S355NH | E 355 R | St E 355 N | – | – |
| S355NLH | – | TSt E 355 N | 50 EE | – |
| S460NH | E 460 R | St E 460 N | – | – |
| S460NLH | – | TSt E 460 N | 55 EE | – |
– block letter "S" means "STEEL FOR STRUCTURAL APPLICATIONS"
– the next fi gure means the minim. yield value required for wall thickness ≤16 mm
– "J2" means impact test value -20° C min. 27 joule
– block letter "H" means "HOLLOW SECTION".
MS Rectangular tube sizes (It can be customized according to customer requirements)
| Size by Inch (diameter) | Thickness | Sizes by MM (diameter) | Thickness |
| inch | inch | mm | mm |
| 1“ x 1/2" | 0.065" | 10mm×15mm | 0.6mm～1.5mm |
| 1“ x 3/4" | 0.065" | 10mm×20mm | 0.6mm～1.5mm |
| 0.095" | 14mm×21mm | 0.6mm～1.5mm | |
| 1 1/4" x 3/4" | 0.065" | 15mm×30mm | 0.6mm～1.5mm |
| 1 1/2" x 3/4" | 0.065" | 15mm×38mm | 0.6mm～1.5mm |
| 0.120" | 20mm×20mm | 0.6mm～2mm | |
| 1 1/2" x 1" | 0.065" | 20mm×30mm | 0.6mm～2mm |
| 0.072" | 20mm×40mm | 0.6mm～2mm | |
| 0.083" | 20mm×50mm | 0.6mm～2mm | |
| 0.120" | 22mm×35mm | 0.6mm～2mm | |
| 2“ x 1” | 0.065" | 25mm×40mm | 0.9mm～2mm |
| 0.083" | 25mm×65mm | 0.9mm～3.75mm | |
| 0.120" | 30mm×20mm | 1mm～2mm | |
| 0.188" | 30mm×40mm | 1mm～3.75mm | |
| 2” x 1 1/4“ | 0.065" | 30mm×45mm | 1mm～3.75mm |
| 0.083" | 30mm×50mm | 1mm～3.75mm | |
| 2“ x 1 1/2” | 0.083" | 30mm×60mm | 1mm～4mm |
| 0.120" | 40mm×25mm | 1mm～4.5mm | |
| 2 1/2“ x 1 1/2” | 0.072" | 40mm×50mm | 1mm～4.5mm |
| 0.083" | 40mm×60mm | 1mm～4.5mm | |
| 0.120" | 40mm×80mm | 1mm～5mm | |
| 0.148" | 40mm×100mm | 1mm～5mm | |
| 0.188" | 50mm×25mm | 2mm～5mm | |
| 0.250" | 50mm×30mm | 2mm～5mm | |
| 3" x 1" | 0.083" | 50mm×60mm | 2mm～5mm |
| 0.120" | 50mm×80mm | 2mm～5mm | |
| 0.188" | 50mm×100mm | 2mm～5mm | |
| 3“ x 1 1/2” | 0.083" | 60mm×30mm | 2mm～6mm |
| 0.120" | 60mm×40mm | 2mm～6mm | |
| 0.188" | 60mm×80mm | 2mm～6mm | |
| 0.250" | 70mm×50mm | 2mm～6mm | |
| 3“ x 2” | 0.065 | 80mm×30mm | 2mm～8mm |
| 0.083 | 80mm×40mm | 2mm～8mm | |
| 0.125 | 80mm×60mm | 2mm～8mm | |
| 0.188 | 80mm×100mm | 2mm～8mm | |
| 0.250 | 100mm×50mm | 2mm～8mm | |
| 3“ x 2” | 0.083" | 120mm×60mm | 2.5mm～10mm |
| 0.120" | 120mm×80mm | 2.5mm～10mm | |
| 0.188" | 140mm×60mm | 2.5mm～10mm | |
| 0.250" | 140mm×80mm | 2.5mm～10mm | |
| 0.312" | 150mm×100mm | 2.5mm～12mm |
